Need replacement parts urgently?
At Minespares, we know downtime isn’t negotiable. That’s why we feature parts and components for industry leading OEM’s like Epiroc.
Their D65 series–including the FlexiROC D65 and SmartROC D65–is engineered for serious drill and blast operators who need reliability and efficiency at scale.
EPIROC MACHINERY

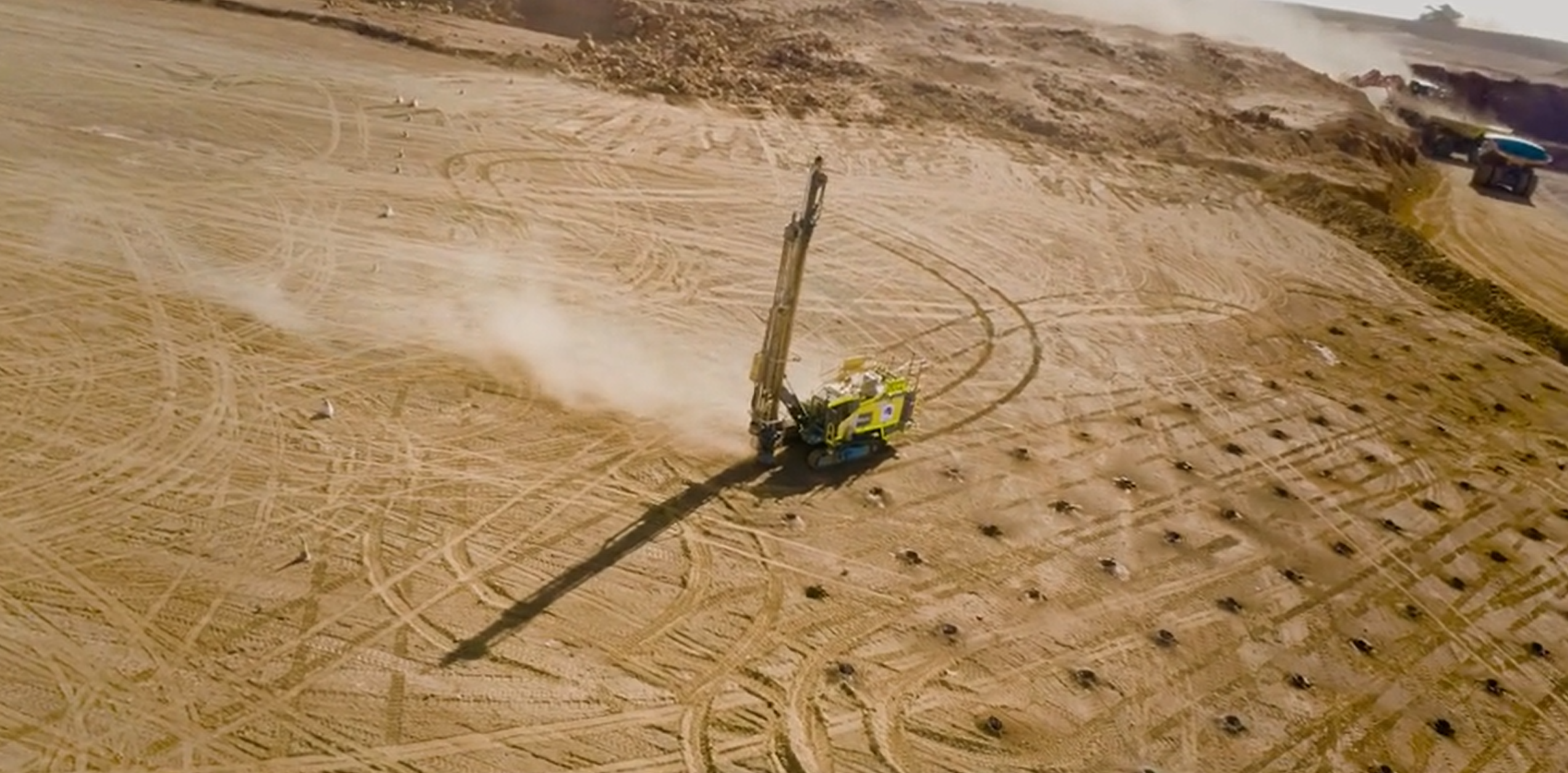

Epiroc D65 Series
Whether you’re chasing uptime, reducing site delays, or looking for smarter procurement, Minespares makes getting these rigs up and running faster, simpler, and with one PO.
FlexiROC D65 Tech Specs
SmartROC D65 Tech Specs
Hole Diameter
110–229mm (4.3–9 in)
Engine Power
~403kW (540HP) at 1,800rpm
(CAT C15, Tier 3 or Tier 4 Final)
Air Flow (FAD)
~470 L/s (995 cfm) at 30 bar
Maximum Hole Depth
Up to ~56m with extra-long feed
(8m rods)
Weight
Approx. 24,900 to 26,700kg depending on feed and emission tier
Drill Method
DTH percussion drilling
Hole Diameter
110-203mm (4.3-8 in)
Engine Power
~402kW (540 HP) at 1,800 rpm
Air Flow (FAD)
~470 L/s (995 cfm) at 30 bar
Maximum Hole Depth
~45m (standard feed) to 55m (long feed)
Weight
Approx. 24,100kg (T4 variant)
Drill Method
DTH percussion drilling
FlexiROC D65
Hole Diameter
110 – 203mm (4.3 – 8 in)
Engine Power
~402kW (540HP) at 1,800 rpm
Air Flow (FAD)
~470 L/s (995 cfm) at 30 bar
Maximum Hole Depth
~45m (standard feed) to 55m (long feed)
Weight
Approx. 24,100kg (T4 variant)
Drill Method
DTH percussion drilling
SmartROC D65
Hole Diameter
110 – 229mm (4.3 – 9 in)
Engine Power
~403kW (540HP) at 1,800rpm
(CAT C15, Tier 3 or Tier 4 Final)
Air Flow (FAD)
~470 L/s (995 cfm) at 30 bar
Maximum Hole Depth
Up to ~56m with extra-long feed (8m rods)
Weight
Approx. 24,900 to 26,700kg depending
on feed and emission tier
Drill Method
DTH percussion drilling
PART/COMPONENT
DESCRIPTION
OEM PART NUMBER
OEM 3222320736 Handles drill rods and swivels during rod handling
OEM 3222338813 Drives the feed mechanism for drilling
OEM 3222340806 / 3222340807 Motors for undercarriage drive; one per side
OEM 3222331321 Keeps hydraulic fluid temperature controlled
OEM 3217976620 Central lubrication unit for boom and feed components
OEM 3222319489 Powerplant for Tier 3 or Tier 4 version D65 rigs
OEM 9822199548 High-pressure screw compressor for DTH drilling
OEM 3222311363 Component in rod handling system (service exchange)
OEM 3222342902 Aligns drill rods to centerline during drilling
OEM 3222338731 Prevents dust ingress at drill rod collaring
OEM 3222326907 Suspension rollers under track chain
OEM 3128082907 Check jaw set for breakout operations
OEM 3222320189 Mechanical tool for rod break-out operations
OEM 3128307488 Wear pad for slide guidance in rod handling
OEM 3222321529
OEM 3222339899
OEM 3222340190
OEM 3222340677
OEM 3222339011
OEM 3222340780
OEM 3222340667
OEM 3222340455
OEM 3222340882
OEM 3222340122
OEM 3222340870
OEM 3222330246 / 3222337152 -50 TO 150 C M12 G 1/2'
OEM 1604694491
OEM 3222324237 Compressor + hydraulic oil cooler
OEM 3222333814 / 3222307856
OEM 3222188169
OEM 3222343049 / 3222326845 Feed extension sensor
OEM 3222312220
OEM 3222342150
OEM 3222354298
OEM 3222321144
OEM 3222344229
OEM 9106219216 / 3222344669
OEM 3222342512 Dust Collector
OEM 3222275610 Jack Leg Cylinder
OEM 8232300086 Oscillation
OEM 3222312071 Feed Extension
OEM 3222327121 Feed Swing
OEM 3222330061 Boom Swing
OEM 3222328068
OEM 3222328069
OEM 3222328070
OEM 3222330061
OEM 3222349977
OEM 3222349974
OEM 3222338846 Feed Chain
OEM 3222338847 Timing Chain
OEM 3222343113
OEM 3222342457
OEM 3222342456
OEM 3222335911 AC Compressor
OEM 3222324409
OEM 3222335030
OEM 3222337038
OEM 1604694491
OEM 1604250880
OEM 3222320883 Flush Air Valve Block
OEM 3222324917
OEM 3177308500
OEM 3222346751
OEM 3222346860
OEM 3222346860 Final Drive Motor
OEM 3222333479
OEM 3222333478
OEM 3222338363
Break-out Table Assembly
Feed Motor
Track Final Drive Motor (LH/RH)
Hydraulic Oil Cooler
Bulk-Fill Grease Module
Engine – CAT C15 Turbo Diesel
Compressor (Air End)
Piston Rod End
Centraliser Jaws
Rod Wipe Seal
Idler Roller Assembly
Check Jaw (Full Length)
Break-Out Wrench (Assembly)
Sliding Piece
Feed Cylinder
Guide
Bracket, mounting
Housing
Shaft
Shaft, input
Mount
Support
Clamp
Pin
Brush
Temp Sensor
Oil Filter
Radiator Assy
Oil Cooler
Air Filter
Inclinometer
Pulse Sensor
Induction Sensor
Sensor
Linear Sensor
Hydraulic Cylinder
Roller Chain
Bearing Unit
Sprocket Wheel
Splined Shaft
Belt
Coupling
Coupling Complete
Hydraulic Pump
Oil Filter
Gear Set
Valve Block
Condenser
DCT Hydraulic Motor
Drive Unit
Hydraulic Motor
Track Motor
Gear Motor
Breakout Cylinder
07
08
05
06
03
04
01
COMMON BREAKDOWN AREAS
02
COMMON FIX
Replace feed motor (P/N 3222338813SX)
Replace the cylinder seals
Feed motor overheating or hydraulic cylinder leaks
IMPACT
Reduced drill thrust and rod feed performance
FEED SYSTEM
FAILURES
COMMON FIX
Replace hose assemblies (OEM 3222346321) and seals (OEM 0666800036)
ISSUE
Wear on hydraulic hoses and seals due to vibration and pressure
IMPACT
Loss of system pressure, contamination, and downtime
HYDRAULIC LEAKS & SEAL FAILURES
COMMON FIX
Replace breakout wrench (OEM 3222320189SX) or check jaws (OEM 3128082907)
ISSUE
Jaws or wrench misalignment or seizure due to mechanical stress
IMPACT
Inefficient rod handling or breakage
BREAK-OUT TABLE WEAR
COMMON FIX
Rebuild or replace compressor air end
(OEM 9822199548SX)
ISSUE
Faulty screw compressor (oil contamination, bearing failure)
IMPACT
Reduced air pressure for DTH drilling
COMPRESSOR & AIR END ISSUES
COMMON FIX
Replace sensors, check RCS diagnostics, ensure 24V battery healthISSUE
Fault codes from sensors, wiring degradation, or battery faults
IMPACT
Shutdowns, false readings, or start failures
ELECTRICAL SYSTEM FAILURES
COMMON FIX
Replace drive motors
(OEM 3222340806SX / OEM 3222340807 SX), idler rollers (OEM3222326907)
ISSUE
IMPACT
Reduced mobility or immobilisation
UNDERCARRIAGE & TRACK WEAR
ISSUE
IMPACT
Engine derating or shutdown
COMMON FIX
Replace or clean hydraulic oil cooler (OEM 3222331321SX), check coolant levelsCOOLING SYSTEM FAILURES
COMMON FIX
Replace centraliser jaws (OEM 3222342902), inspect sliding piece (OEM 3128307488)
ISSUE
Worn centraliser jaws or bent guide components
IMPACT
Poor collaring, rod damage, or off-axis drilling
ROD CENTRALISER MISALIGNMENT
